2 Inches Guardrail Roll Forming Machine Material Thickness 1.5-2 Mm Galvanized

Name: 2 Inches Guardrail Roll Forming Machine Material Thickness 152 Mm Galvanized
Brand: Sussman
Price: 69500 USD

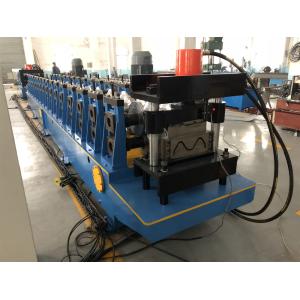

Wholesale 2 Inches Guardrail Roll Forming Machine Material Thickness 1.5-2 Mm Galvanized from china suppliers

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : USD69500 Per set

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Material thickness : 1.5-2mm galvanized coil

Uncoiler : 3 Tons manual

Servo Feeder Power : 1.5Kw

Rolling speed : 5m--10m/min(not including punching)

Roller stations : 12 stations

Roller Material : GCR15 quenched 58°-62°,chromed

Decelerating motor : BWD14-43-37KW

Main motor power : 22kw

Main shaft : 120mm, 45﹟forge steel

Weight : about 15T

Contact Now

10m/min 2 inches Guide Rail Roll Forming Machine Material Thickness 1.5-2mm Galvanized Coil

Technical Parameter

Material of coil	Material Thickness	1.5-2mm galvanized
	Un Coiler	3 tons manual
Levelling device	7 rolls	NC300
Servo feeder	Power	1.5kw
Punching	Hydraulic punching	2 sets of punching dies
Forming system	Rolling Speed	10 m/min
	Roller Stations	12 stations
	Roller Material	45# Steel with quenching 50mm shaft
	Maim Motor Power	7.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC (Panasonic) as list in the note
	Weight	About 2.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 4500mm* Width 600mm* Height 800mm

Flow Chart

Uncoiler—Levelling—Servofeeding—Hydraulicpunching—Rollforming—Cutting—Outside table

2 Inches Guardrail Roll Forming Machine Material Thickness 1.5-2 Mm Galvanized

Machine Components

3 ton passive decoiler	1 set
Levelling device	1 set
Servo feeding device	1 set
Hydraulic punching	2 sets
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Hydraulic cutting	1 unit
Out tables	1 unit

Profile Drawing

Product Tags:

corrugated roll forming machine

highway guardrail roll forming machine

2 Inches Guardrail Roll Forming Machine Material Thickness 1.5-2 Mm Galvanized Images
